型号

SA-ADP

设计

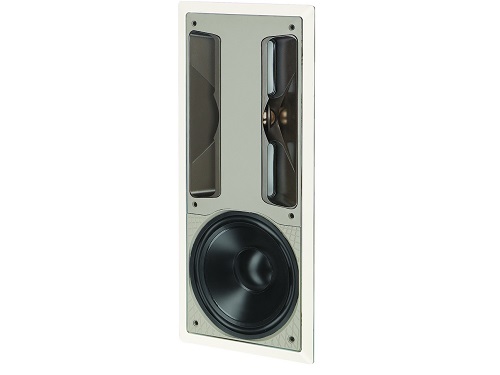

7-driver, 3-way in-wall surround / rear, Ultra-Rigid™ die-cast chassis / mounting bracket (optimized reverberant soundfield)

分频器

3rd-order electro-acoustic at 2.5 kHz; 2nd-order electro-acoustic at 550 Hz

频率响应   On-Axis

±2 dB from 54 Hz - 20 kHz

频率响应   30° 离轴

(reverberant soundfield)

高音单元

Two 25-mm (1 in) G-PAL™ domes, dual super-neodymium magnets, die-cast heatsink chassis

中音单元

Four 29-mm (1-1/8 in) x 102-mm (4 in) S-PAL™ cones, Two 14-mm (9/16 in) four-layer voice-coils, dual super-neodymium magnets, AVS™ die-cast heatsink chassis, IMS/SHOCK-MOUNT™

低音单元

210-mm (8 in) co-polymer mineral-filled polypropylene cone, 38-mm (1-1/2 in) dual-layer voice-coil, massive ceramic / ferrite magnet, AVS™ die-cast heatsink chassis, IMS/SHOCK-MOUNT™

低音下潜

40Hz (DIN)

灵敏度   房间/消声室

90 dB / 86 dB

阻抗

Compatible with 8 ohms

合适的放大器功率范围 Range

15 - 180 watts

最大输入功率

120 watts

颜色

White, paintable

重量

11.8 lbs. (5.4 kg)

产品尺寸   （H×W）

20.0625" (51cm) × 9.0625" (23.1cm)

开孔尺寸 （H×W）

19.125" (48.6cm) × 8.1875" (20.7cm)

最小安装深度

Depth required is the distance

between 1/2" drywall, or similar material.

3" (7.6cm)

最少内部容积

0.70 cu ft (20 L)
